Manual Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 700W 1100W 1500W 2000W

Product Description:

The handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding and does not require pressure during the operation. Its working principle is to directly irradiate a high-energy intensity laser beam onto the surface of the material, and through the interaction between the laser and the material , causing the material to melt internally, then cool and crystallize to form a weld. The handheld fiber laser welding machine fills the gap of handheld welding in the laser equipment industry and subverts the working mode of the traditional laser welding machine. The handheld fiber laser welding machine replaces the previous fixed optical path. It is flexible and convenient, and the welding distance is long. It also makes the outdoor operation of laser welding easier. It is mainly aimed at laser welding of long-distance and large workpieces to overcome the limitations of the workbench travel space. The heat-affected area during welding is small, which will not cause work deformation, blackening, or traces on the back, and the welding depth is large. The welding is firm and the melting is sufficient. It can not only realize thermal conduction welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, seal welding, seam welding, etc. Hand-held welding subverts the working mode of the traditional laser welding machine. It has the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. It can weld thin stainless steel plates, iron plates, galvanized plates and other metal materials. Perfectly replaces traditional argon arc welding, stainless steel plate, iron plate, aluminum plate and other metal materials welding.

Features:

1. Overview Advantage

	Traditional welding	A2000 Laser Weling
Welding Speed	Normal	Faster - more than 4 times faster than TIG welding
Welding Quality	Depends on operator experience	Consistently high quality results
Operate	Difficult	Easy
Bending and deformation	Easy to deform	Not easily deformed
Heat Affected Zone	Big	Small
Swing welding	None	Weld width up to 5mm

TIG welding:
•High heat input – deformation of parts
•Requires large area post-weld trimming treatment
•Difficulty in welding thin metals
•Welding of metals of different thicknesses is also restricted

MIG welding:
•Consumable welding wire
•Need to be polished and cleaned after welding
•Limited operating angle

A2000 Laser Welding:
•Welding speed greatly increased
•Easy to get started
•High quality welding results
- Not easily deformed
- Simple post-weld treatment

2.Welding Speed

Speed advantage (thin materials)

Higher welding efficiency

No gap setting time

No need to polish after welding

Case: 0.134"(3.4mm) Mild Steel
	Butt Welding	T-Welding
A2000 Laser Welding	20.8s	19.7s
MIG Welding	24.6s	27.9s
TIG Welding	41.4s	50.3s

3.Welding Quality

4.Operation

Operation Moudle
CW Continuous welding		When the trigger is pressed, the laser transmitter fires continuously at the set power. *Maximum penetration and welding speed
TACK Spot Welding		Laser fires at set power – for predefined time only (max. 4.5 seconds) • Suitable for consistent spot welding
STITCH Multi-line Welding		Laser fires at set power level – for a fixed length of predefined time (up to 4.5 seconds) • Suitable for continuous spot or lap welding

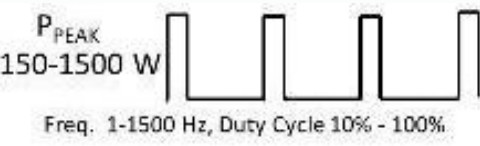

MODULATION Modulated Welding		When the trigger is pressed, the laser continuously emits a predefined pulse waveform. Maximum power 1200W ·Reduce energy consumption by reducing welding speed and heat sensitivity
HPP High Peak Power Welding		When the trigger is pressed, the laser continuously emits a predefined pulse waveform with a maximum power of 2000W • Used for highly reflective welding

Technical Parameters:

Model	A700	A1100	A1500	A2000
Weight	1.2G-5.0G	1.2G-5.0G	1.2G-5.0G	1.2G-5.0G
Cut Thickness	-2mm(SS)	-3.5mm(SS)	-4mm(SS)	-6mm(SS)

Production:

Sheet Metal Processing

Support and Services:

Technical Support and Service for Laser Cutting Machine

We provide professional and reliable technical support and service, allowing you to get the most out of your Laser Cutting Machine. Our team of experts can provide you with prompt, comprehensive and effective solutions for all your questions and concerns.

We offer a range of services, from preventive maintenance to emergency repairs, to keep your Laser Cutting Machine running smoothly and efficiently.

We also provide ongoing technical training and remote support to ensure you stay up to date on the latest developments in the field.

For any questions or assistance, please contact us and our team of experts will be happy to help.
